# Beacon HTTP

"Beacon HTTP" listener starts a web server and registers a "beacon" agent.

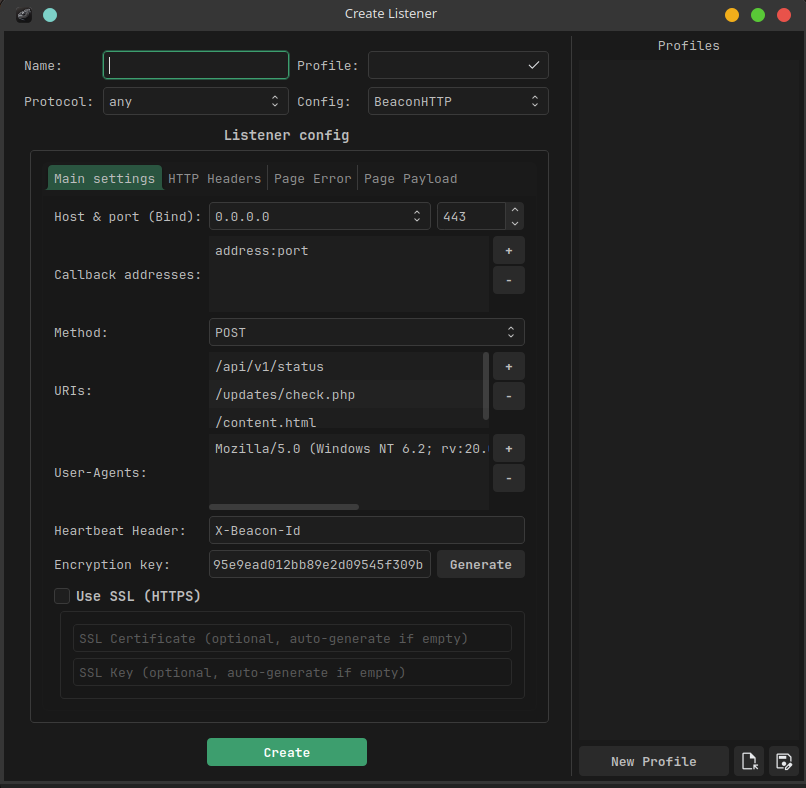

<figure><img src="/files/NBoJwrJ6zc9HN8N8IRbd" alt=""><figcaption></figcaption></figure>

## Beacon HTTP parameters

{% tabs %}
{% tab title="Main settings" %}

<figure><img src="/files/vd2NJOSydWrweOygEBZc" alt=""><figcaption></figcaption></figure>

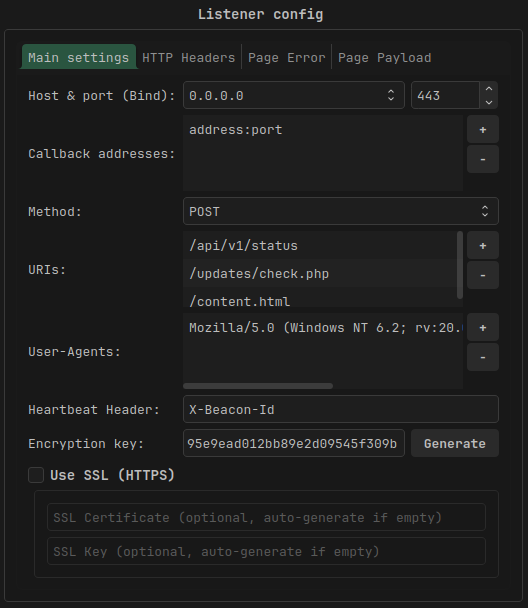

<table><thead><tr><th width="187">Parameter</th><th>Description</th></tr></thead><tbody><tr><td><strong>Host &#x26; port (Bind)</strong></td><td><strong>Required.</strong> The interface address and port to which your HTTP Beacon web server will bind.</td></tr><tr><td><strong>Callback addresses</strong></td><td><strong>Required.</strong> List of address:port to which the agent will send requests. Current server rotation strategy: round-robin.</td></tr><tr><td><strong>Method</strong></td><td>The HTTP method that the agent will use to transmit data to the server and receive commands</td></tr><tr><td><strong>URI</strong></td><td><strong>Required.</strong> The HTTP endpoint to which the agent sends the request.</td></tr><tr><td><strong>User-Agent</strong></td><td><strong>Required.</strong> User-Agent for HTTP requests</td></tr><tr><td><strong>Heartbeat Header</strong></td><td><strong>Required.</strong> The HTTP header in which the agent will transmit registration information</td></tr><tr><td><strong>Encryption key</strong></td><td><strong>Required.</strong> Communication channel encryption key</td></tr><tr><td><strong>Use SSL</strong></td><td>If set, use HTTPS. If the SSL certificate and key are not specified, the server will generate them itself.</td></tr></tbody></table>
{% endtab %}

{% tab title="HTTP Headers" %}

<figure><img src="/files/gAM5We7lwVzMjOiUUdl2" alt=""><figcaption></figcaption></figure>

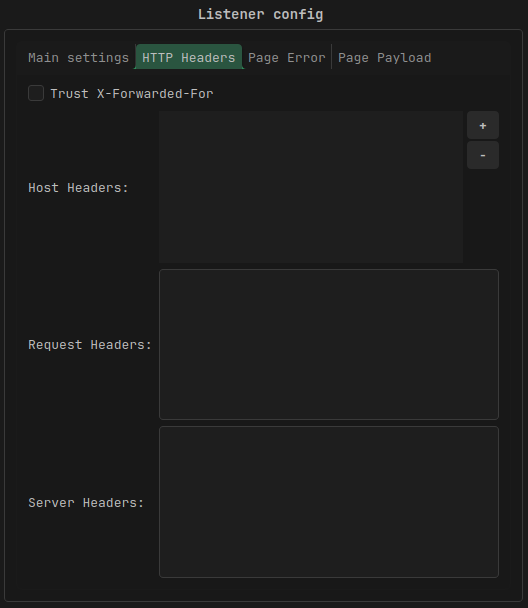

<table><thead><tr><th width="230">Parameter</th><th>Description</th></tr></thead><tbody><tr><td><strong>Trust X-Forwarded-For</strong></td><td>This option decides if listener uses the X-Forwarded-For HTTP header to determine the remote address of a request. <em>Use this option if your AdaptixServer is behind an HTTP redirector</em></td></tr><tr><td><strong>Host Header</strong></td><td>Host header for HTTP requests</td></tr><tr><td>Request Headers</td><td>HTTP headers that the agent will use when sending the request</td></tr><tr><td>Server Headers</td><td>HTTP headers that will be in the server's response.</td></tr></tbody></table>
{% endtab %}

{% tab title="Page Error" %}

<figure><img src="/files/xMlb6hvYLQxcRxTjpGyD" alt=""><figcaption></figcaption></figure>

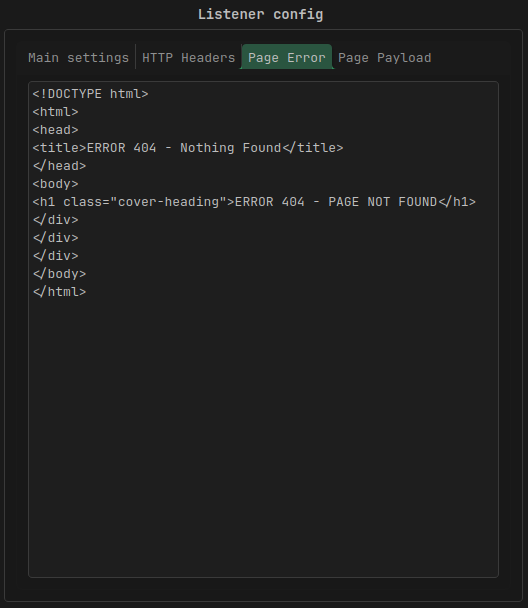

**Page Error** - the HTTP server's response to any request that is not from an agent.
{% endtab %}

{% tab title="Page Payload" %}

<figure><img src="/files/sx324tFND2AvGsYeZOFq" alt=""><figcaption></figcaption></figure>

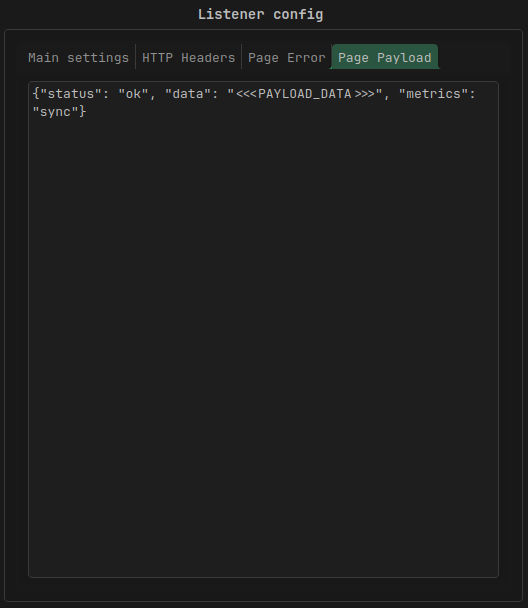

**Page Payload** - Server response to agent request. `<<<PAYLOAD_DATA>>>` will be replaced with data for the agent.
{% endtab %}
{% endtabs %}
